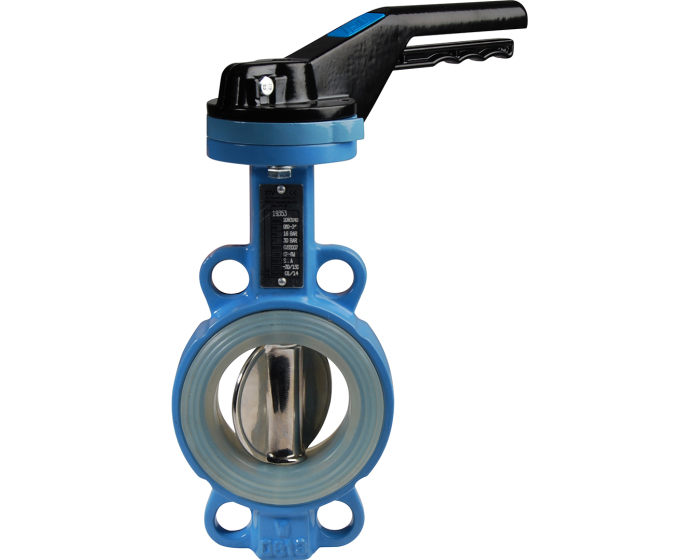

The 1183 series valve is a TTV wafer butterfly valve, with a ductile iron body, alimentary silicone seat and stainless steel polished disc , suitable for high temperature networks, oils, acids, air or inert gas, food products.
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| Option certificate 3.1 | Yes |
| DN metric | 40/49 |
| Construction standard | ISO 10631 - EN 593 |
| Type of paint | Rilsan |
| Paint coating thickness (µm) | 250.00 |
| EN face-to-face standard | EN 558 Series 20 |
| DIN face-to-face standard | DIN 3202 Part.3 Series K1 |
| ISO face-to-face standard | ISO 5752 Series 20 |
| Brand | TTV |
| Tightness test standard | EN 12266-1 Rate A |
| Type of seat | Removable |
| Notch plate | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 304 |
| Lockable | Yes |
| Square, star (mm) | Square 8 mm |
| ATEX compatible | Yes |
| Torque (Nm) | 9 |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 33.0 |
| Fluid | Gas 5 / City gas / Liquid gas / Natural gas |
| Kv (m³/h) | 36.0 |
| Seat | Silicone - Food grade |
| Body material | Ductile iron |
| Disc material | Stainless steel ASTM A351 CF8M |
| ISO pad 5211 | F05/F07 |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| TS max (°C) | 150 |
| TS min (°C) | -40 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| ATEX zone | 1 & 21. 2 & 22 |
| Through shaft | Yes |
| Warranty period | 10 years |
| CE | Yes |
| Handle material | Aluminium |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 | 1183040 | S1009542 |
€170.67
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' | 1183050 | S1009543 |
€170.67
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 | 1183065 | S1009544 |
€199.11
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' | 1183080 | S1009545 |
€232.70
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' | 1183100 | S1009546 |
€274.10
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' | 1183125 | S1009547 |
€339.79
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' | 1183150 | S1009548 |
€406.50
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' | 1183200 | S1009549 |
€672.26
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' | 1183250 | S1009550 |
€1,042.31
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN300 - 12'' | 1183300 | S1009551 |
€1,376.63
(excl. btw)
|
add to cart |
